INDUSTRIAL & PROFESSIONAL EQUIPMENTS
MADE IN USA | ECONOMIC, DURABLE, SAFE & EASY TO OPERATE
PRESSURE TEST CHAMBER
The Hydrorex Model PTC-60K Burst and Hydrostatic Test Chamber is a high-performance enclosure bunker for destructive and non-destructive testing applications… Manufactured and designed for high pressure resistance up to 60,000 psi per API requirements… All Stainless steel walls reinforced with wood to cushion the impact.
Optional Internal Pressure Hose needs to be requested
- Connections Options: JIC - NPT - TYPE M9 - Autoclave MP & HP
- Applications: Burst, Hydrostatic, Destructive, Leak Testing & More.
- Pressures: Up to 60,000 PSi
- Construction: Stainless walls & square tube structure 1/8" Thick
- Design: According to military, nuclear, automotive, and aerospace specifications such as API, ASTM, ASME, ISO, DIN, and BS.
PTC-16 | 60,000 PSI
Pressure: 0-60,000 PSI (Bar 4,000 )
Dimensions: 16″ x 16″ x 16″
PRICE: $1,800.00
PTC-20 | 0-60,000 PSI
Pressure: 0-60000 PSI (BAR 4000)
Dimensions: 20″ x 20″ x 20″
PRICE: $2,880.00
PTC-24 | 0-60,000 PSI
Pressure: 0-60000 PSI (BAR 4000)
Dimensions: 24″ x 24″ x 24″
PRICE: $ 3,000.00
PTC-30 | 60,000 PSI
Pressure: 0-60000 PSI (BAR 4000 )
Dimensions: 30″ x 30″ x 30″
PRICE: $3,380.00
Short Hoses Internal Chamber
0-10000 Psi
Hydrostatic Hose 3ft
1/4 Female JIC
37 Degrees Swivel Nuts
H3-10k-4JIC
PRICE: $190.00
- DATASHEET
- BUY ONLINE

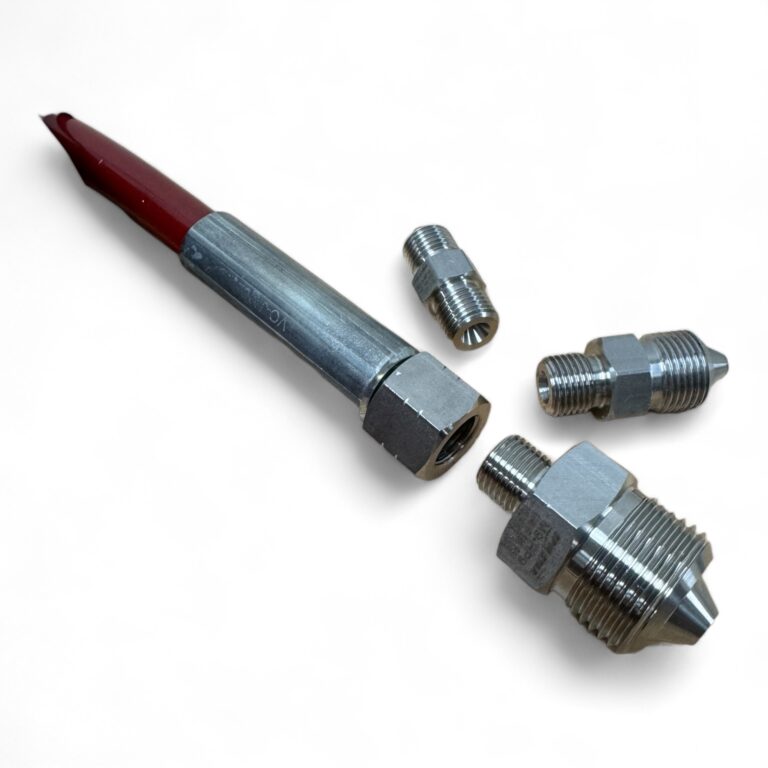

10ft Exterior Chamber Hoses
0-58000 Psi
Hydrostatic Hose 10ft
Type M9 – Swivel Nuts
H10-58K-M9
PRICE: $575.00

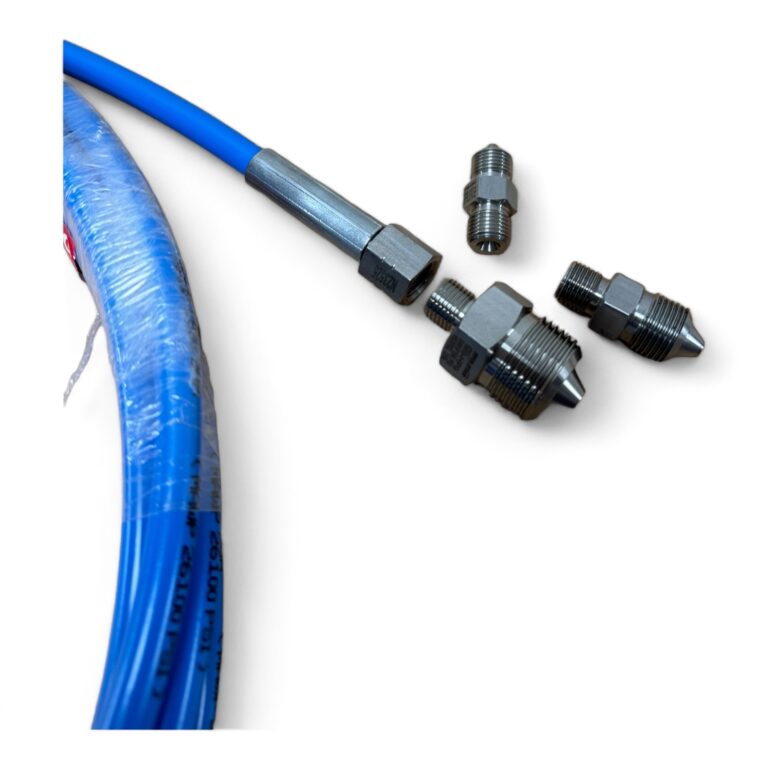

0-36000 Psi
Hydrostatic Hose 10ft
Type M9 – Swivel Nuts
H10-36K-M9
PRICE: $495.00
0-26000 Psi
Hydrostatic Hose 10ft
Type M9 – Swivel Nuts
H10-26K-M9
PRICE: $395.00

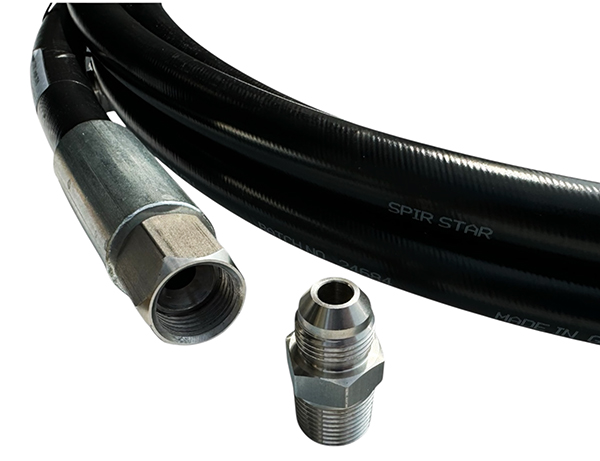

0-15000 Psi
Hydrostatic Hose 10ft
1/4 Female JIC
37 Degrees Swivel Nuts
H10-15k-4JIC
PRICE: $280.00

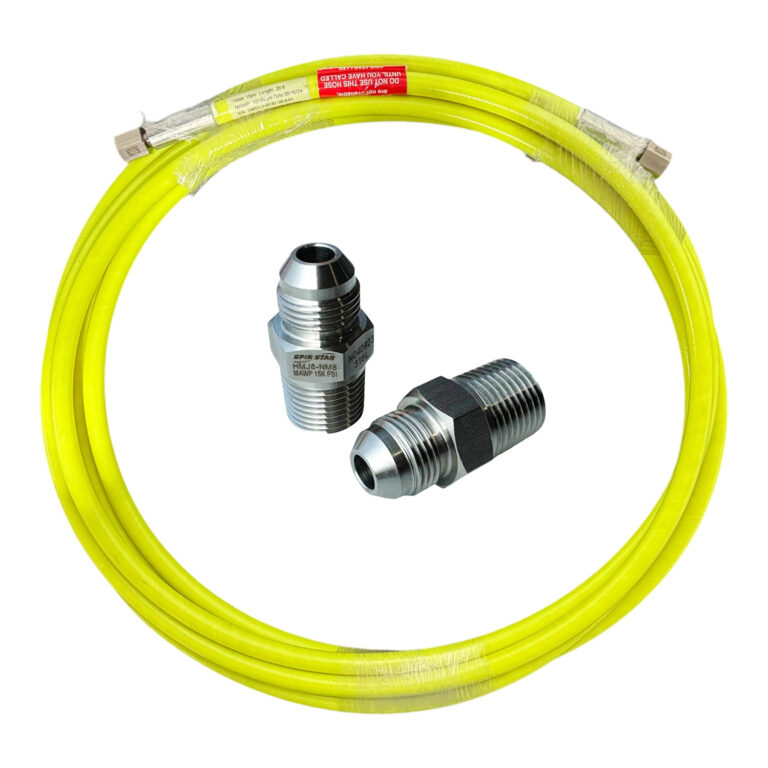

0-10000 Psi
Hydrostatic Hose 10ft
1/4 Female JIC
37 Degrees Swivel Nuts
H10-10k-4JIC
PRICE: $280.04
