High Pressure Hydrostatic Test Pump

INDUSTRIAL & PROFESSIONAL EQUIPMENTS

MADE IN USA | ECONOMIC, DURABLE, SAFE & EASY TO OPERATE

Ultra High Pressure Test Pump | 10-REX Series

High pressure hydrostatic test pump “Professional Style” unique in the pressure industry. Air operated liquid pressure system. Economic, safe, durable and easy to operate, offering several model on pressure ranges from 40000 PSI up to 65,000 PSI, with several flow rates. Designed with the highest resistance of Parker Autocalve components for greater quality.

Applications: Hydrostatic, Pressure Calibration, Burst, Leak detector, Instrumentation Certificates, Booster.

Industries: Piping, Hoses, Fittings & Valves, Instrumentation Controls, Pressure Vessels, and more…

10-REX SERIES | ECONOMIC, DURABLE, SAFE & EASY TO OPERATE | MADE IN USA

10-404REX | 40000 PSI

Output Pressure: 40000 PSI (2758 BAR)
Output Flow: 0.10 GPM (0.40 LPM)

PRICE: $ 8,080.00

10-454REX | 45000 PSI

Output Pressure: 45000 PSI (3102 BAR)
Output Flow: 0.10 GPM (0.40 LPM)

PRICE: $8,980.00

10-552REX | 55000 PSI

Output Pressure: 55000 PSI (3792 BAR)
Output Flow: 0.10 GPM (0.40 LPM)

PRICE: $9,180.00

10-602REX | 60000 PSI

Output Pressure: 60000 PSI (4136 BAR)
Output Flow: 0.10 GPM (0.40 LPM)

PRICE: $9,580.00

10-652REX | 65000 PSI

Output Pressure: 65000 PSI (4481 BAR)
Output Flow: 0.10 GPM (0.40 LPM)

PRICE: $10,180.00

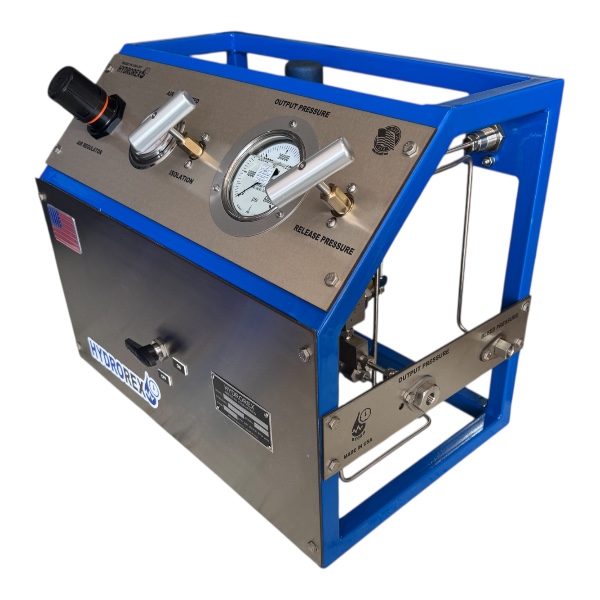

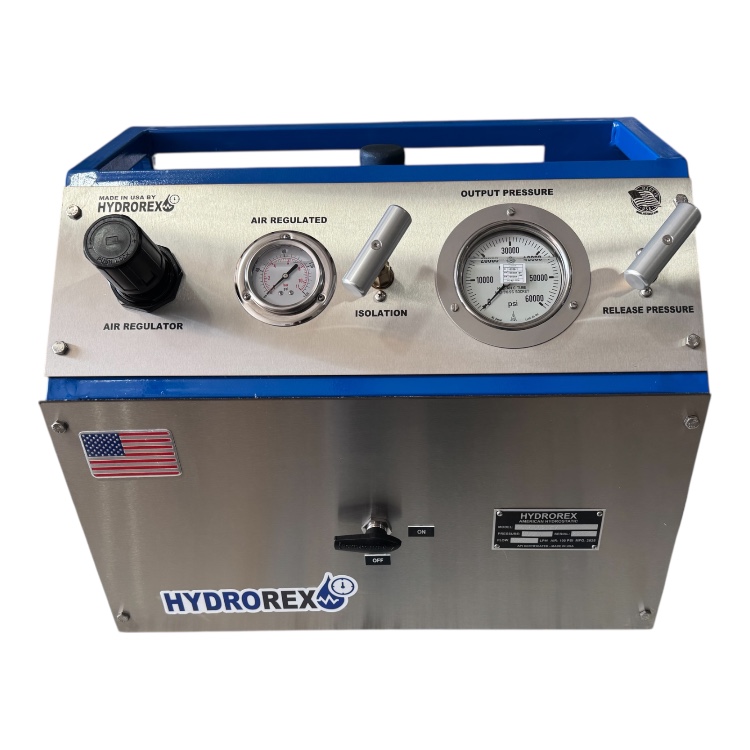

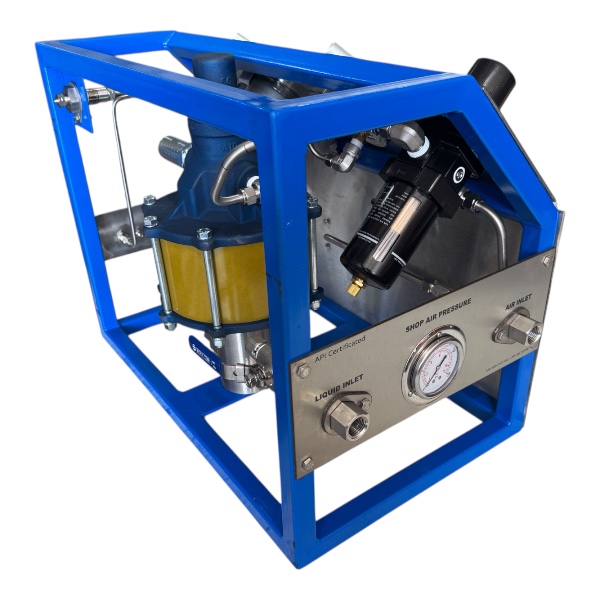

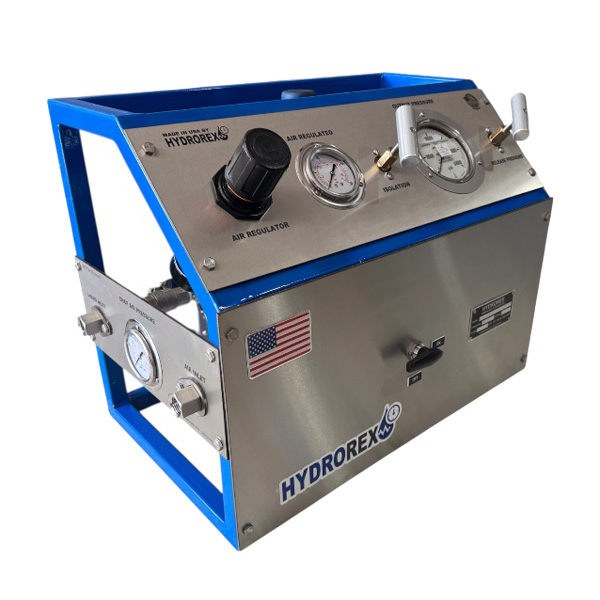

Ultra high pressure hydrostatic pressure test pump system, air operated (pneumatic driven) liquid pressure piston pump.
It specializes in all Industrial hydro pressure testing including: Piping, Hoses, Vessels, Spools, Valves, Plumbing, Instrumentation Test, Subsea, and many more applications.
10-REX Series pupms have 7″ diameter air piston and a 2-1/2″ stroke. When operating from 0 to rated hydraulic pressure, air consumption will be approximately 24- 56 SCFM of free air at 100 psi output. At lower air pressures and higher hydraulic pressures air consumption will be reduced proportionately to flow rates indicated.
The 10-REX Series “Dry Lube” pump it is pre-lubricated and therefore does not require an air line lubricator.
For use on a wide range of fluids including water, oils/hydraulics, glycol and many other solubles made in USA with highest quality components for low operational cost, used in all industries including Oil & Gas.
