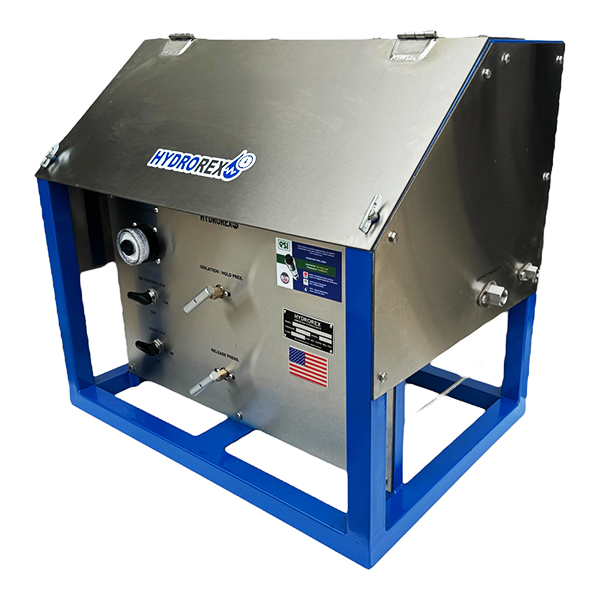

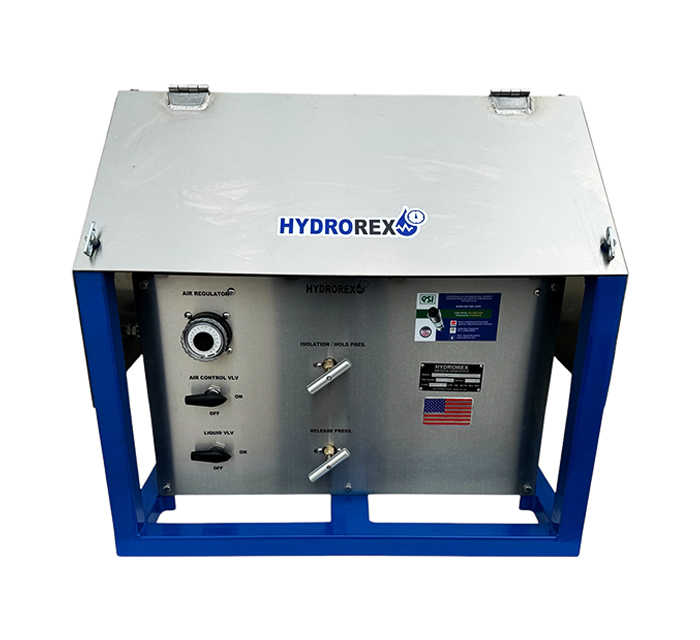

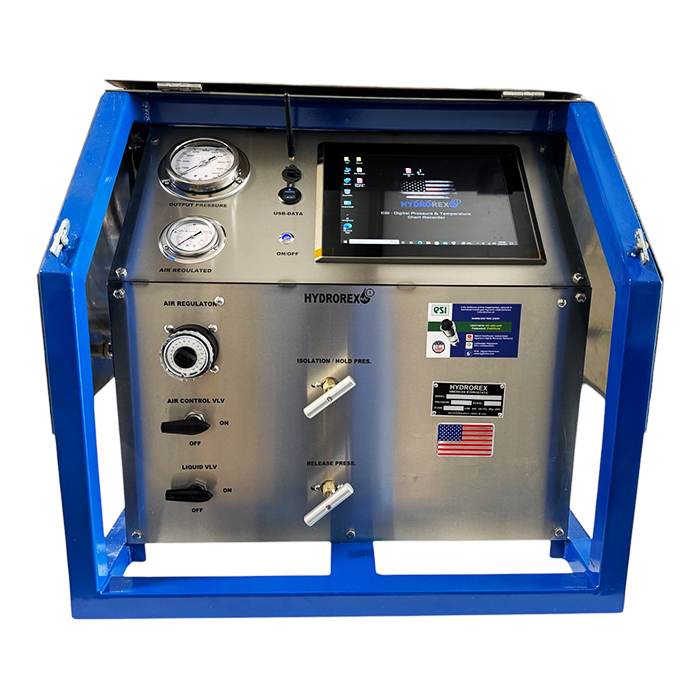

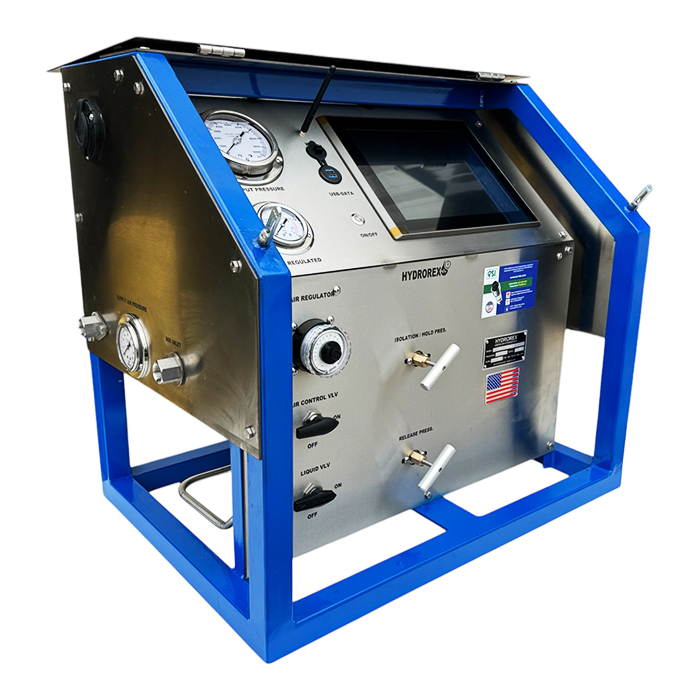

Digital Hydrostatic Pressure Test Unit | 10D-REX Series

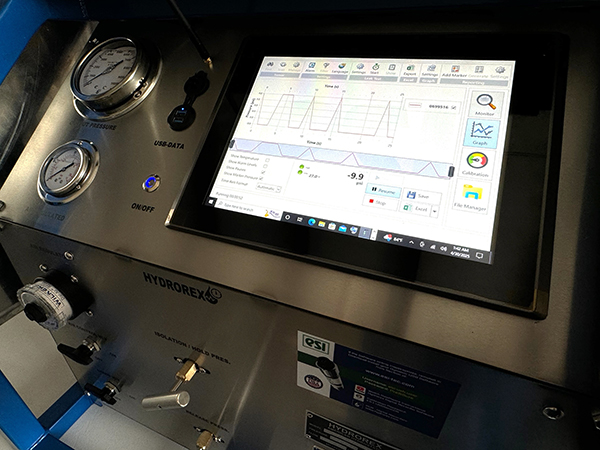

Digtial hydrostatic pressure test unit is the most common standard testing equipment with digtial pressure and temperature graph chart recorder with a 0.15% accuracy. Air operated liquid pressure pump with a variety of models on pressure that ranges from 500 PSI to 65,000 PSI, with several flow rates.
- Creates customized pressure test reports and certificates.
- Weatherproof touchscreen panel PC in 12 inch mount on stainless control panel.
- Real-time pressure & temperature monitoring and reporting.
- With the ease of a Window’s operating system
- ESI technologies pressure usb transducer & software
- For use on a wide range of fluids including water, oils/hydraulics, glycol and many other solubles.
- All Stainless steel anticorrosive structure and components, made in USA.
System Weight: 125 Lbs / Dimensions 28″x 20″x 26″ – Shipment Weight: 170 Lbs / Pallet Dimensions: 40″ x 30″ x 30″ (Freight) – HS Code: 8413.50.0050
10D-515REX | 500 PSI
Output Pressure: 500 PSI (35 BAR)
Output Flow: 7.9 GPM (30 LPM)
Digital Recorder: 0.15% Accuracy
PRICE: $13,068.00
10D-109REX | 1000 PSI
Output Pressure: 1000 PSI (70 BAR)
Output Flow: 5.81 GPM (22 LPM)
Digital Recorder: 0.15% Accuracy
PRICE: $13,068.00
10D-2016REX | 2000 PSI
Output Pressure: 21000 PSI (138 BAR)
Output Flow: 4.22 GPM (16 LPM)
Digital Recorder: 0.15% Accuracy
PRICE: $13,068.00
10D-365REX | 3600 PSI
Output Pressure: 3600 PSI (275 BAR)
Output Flow: 2.6 GPM (10 LPM)
Digital Recorder: 0.15% Accuracy
PRICE: $13,068.00
10D-603REX | 6000 PSI
Output Pressure: 6000 PSI (414 BAR)
Output Flow: 1.5 GPM (6 LPM)
Digital Recorder: 0.15% Accuracy
PRICE: $13,068.00
10D-102REX | 10000 PSI
Output Pressure: 10000 PSI (685 BAR)
Output Flow: 1.05 GPM (4.0 LPM)
Digital Recorder: 0.15% Accuracy
PRICE: $13,068.00
10D-151REX | 15000 PSI
Output Pressure: 15000 PSI (1034 BAR)
Output Flow: 0.72 GPM (2.75 LPM)
Digital Recorder: 0.15% Accuracy
PRICE: $13,728.00
10D-181REX | 18000 PSI
Output Pressure: 18000 PSI (1241 BAR)
Output Flow: 0.52 GPM (2.0 LPM)
Digital Recorder: 0.15% Accuracy
PRICE: $13,728.00
10D-201REX | 20000 PSI
Output Pressure: 20000 PSI (1378 BAR)
Output Flow: 0.42 GPM (1.6 LPM)
Digital Recorder: 0.15% Accuracy
PRICE: $13,728.00
10D-251REX | 25000 PSI
Output Pressure: 25000 PSI (1694 BAR)
Output Flow: 0.42 GPM (1.6 LPM)
Digital Recorder: 0.15% Accuracy
PRICE: $14,608.00
10D-306REX | 30000 PSI
Output Pressure: 30000 PSI (2068 BAR)
Output Flow: 0.26 GPM (1.0 LPM)
Digital Recorder: 0.15% Accuracy
PRICE: $14,828.00
10D-404REX | 40000 PSI
Output Press.: 40000 PSI (2758 BAR)
Output Flow: 0.20 GPM (0.75 LPM)
Digital Recorder: 0.15% Accuracy
PRICE: $15,268.00
10D-454REX | 45000 PSI
Output Press.: 45000 PSI (3103 BAR)
Output Flow: 0.20 GPM (0.75 LPM)
Digital Recorder: 0.15% Accuracy
PRICE: $16,038.00
10D-6002REX | 60000 PSI
Output Press.: 60000 PSI (4136 BAR)
Output Flow: 0.13 GPM (0.50 LPM)
Digital Recorder: 0.15% Accuracy
PRICE: $16,368.00
10D-685REX | 68000 PSI
Output Press.: 68000 PSI (4689 BAR)
Output Flow: 0.13 GPM (0.50 LPM)
Digital Recorder: 0.15% Accuracy
PRICE: $17,248.00
